Chromasound

The Chromasound is a music player that can play original video game soundtracks. Instead of playing prerecorded audio, the Chromasound uses FM synthesis to generate sound in real time. While it can play small prerecorded audio samples, it generally takes a musical note as input and produces a custom sound at that pitch. In other words, it plays sheet music using programmable instruments.



The Chromasound receives instructions to play notes using different instruments at different times, and executes those instructions using FM synthesis hardware from either the SEGA Genesis or ASCII MSX2 entertainment console. The instructions are read from a VGM file.

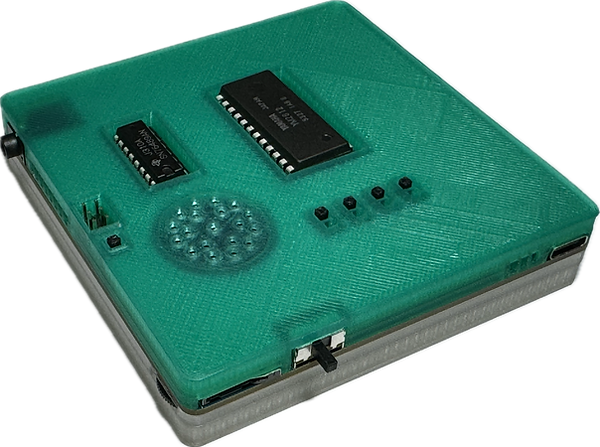

Chromasound Nova
Nova

Audio

9 FM synthesis channels, 2 operators per channel
3 FM channels are convertible to 5 rhythm channels
3 Tone/noise channels
1 PCM channel, up to 44.1 kHz

​

Compatible with ASCII MSX2 soundtracks

Hardware

16 MHz processor with 2 KB RAM
1x FM synthesizer
1x Tone/noise generator
1x microSD slot
1x USB-C serial port (supports charging)
1x 850 mAh lithium battery

Form Factor

63.5 x 63.5 x 10 mm

Available Now

Chromasound Studio

Play and compose music for the Chromasound and other VGM players.

In-program playback supports the Chromasound Direct and the built-in Chromasound Emulator.

Operating System
x64
arm64
Linux
Download
Download
macOS
Download
Download
Windows
Download
Download

Download the support pack to get started quickly.

csplay

Play VGM files using a Chromasound Direct or the built-in Chromasound Emulator.

qcsplay is the GUI version.

Operating System
x64
arm64
Linux
Download
Download
macOS
Download
Download
Windows
Download
Download

csplay is the CLI version.

Operating System
x64
arm64
Linux
Download
Download

Chromasound Updater

Use this utility to update the firmware on your Chromasound.

Operating System
x64
arm64
Linux
Download
Download
macOS
Download
Download
Windows
Download
Download

Note: You may need to run the updater as root or Administrator depending on your system setup.

​

Windows users: You will need to install serial port drivers from FTDI before you run the updater. Be sure to extract the drivers to your root directory (C:\) before you attempt to install them in the Device Manager.
